产品名称：FT TYPE COMMON MODE CHOKE
产品应用：Horizontal(H)横型、Vertical(V) 縦型
Horizontal(H)横型、Vertical(V) 縦型
點擊下載相關說明書
产品说明
Type | Dimensions（mm) | Wire Diameter
(mm W/T) | Inductance
(Min mH) | Rated Current
(A) |

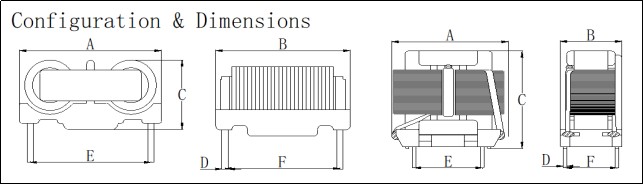

A(MAX) | B(MAX) | C(MAX) | D | E | F |
FT24H | 24.5 | 26.0 | 16.0 | 0.8 | 17.0 | 21.5 | 1.0*0.1 | 60.0 | 1.0 |
FT24H | 24.5 | 26.0 | 16.0 | 0.8 | 17.0 | 21.5 | 1.0*0.15 | 30.0 | 1.5 |
FT24H | 24.5 | 26.0 | 16.0 | 0.8 | 17.0 | 21.5 | 1.0*0.2 | 20.0 | 2.0 |
FT19H | 26.5 | 24.5 | 14.0 | 0.6 | 17.0 | 15.5 | 1.0*0.1 | 29.0 | 1.0 |
FT19H | 26.5 | 24.5 | 14.0 | 0.6 | 17.0 | 15.5 | 1.0*0.15 | 15.0 | 1.5 |
FT19H | 26.5 | 24.5 | 14.0 | 0.6 | 17.0 | 15.5 | 1.0*0.2 | 7.0 | 2.0 |
FT19V | 26.5 | 14.0 | 24.5 | 0.6 | 10.0 | 10.0 | 1.0*0.1 | 29.0 | 1.0 |
FT19V | 26.5 | 14.0 | 24.5 | 0.6 | 10.0 | 10.0 | 1.0*0.15 | 15.0 | 1.5 |
FT19V | 26.5 | 14.0 | 24.5 | 0.6 | 10.0 | 10.0 | 1.0*0.2 | 7.0 | 2.0 |
FT15H | 21.0 | 17.0 | 13.0 | 0.6 | 17.0 | 12.9 | 1.0*0.1 | 18.0 | 1.0 |
FT15H | 21.0 | 17.0 | 13.0 | 0.6 | 17.0 | 12.9 | 1.0*0.15 | 9.0 | 1.5 |
FT15H | 21.0 | 17.0 | 13.0 | 0.6 | 17.0 | 12.9 | 1.0*0.2 | 6.0 | 2.0 |
FT15V | 21.7 | 11.5 | 17.0 | 0.8 | 8.0 | 11.0 | 1.0*0.1 | 18.0 | 1.0 |
FT15V | 21.7 | 11.5 | 17.0 | 0.8 | 8.0 | 11.0 | 1.0*0.15 | 9.0 | 1.5 |
FT15V | 21.7 | 11.5 | 17.0 | 0.8 | 8.0 | 11.0 | 1.0*0.2 | 6.0 | 2.0 |
FT13.5V | 19.0 | 11.0 | 17.0 | 0.5 | 10.5 | 8.0 | 1.0*0.1 | 16.0 | 1.0 |
FT13.5V | 19.0 | 11.0 | 17.0 | 0.5 | 10.5 | 8.0 | 1.0*0.15 | 11.0 | 1.5 |
FT13.5V | 19.0 | 11.0 | 17.0 | 0.5 | 10.5 | 8.0 | 1.0*0.2 | 7.0 | 2.0 |
FT13.5H | 22.0 | 17.0 | 18.0 | 0.5 | 13.0 | 10.0 | 1.0*0.1 | 16.0 | 1.0 |
FT13.5H | 22.0 | 17.0 | 18.0 | 0.5 | 13.0 | 10.0 | 1.0*0.15 | 11.0 | 1.5 |
FT13.5H | 22.0 | 17.0 | 18.0 | 0.5 | 13.0 | 10.0 | 1.0*0.2 | 7.0 | 2.0 |
