产品名称：EER Type Transformer
产品应用：Horizontal(H)横型
Horizontal(H)横型
點擊下載相關說明書
产品说明

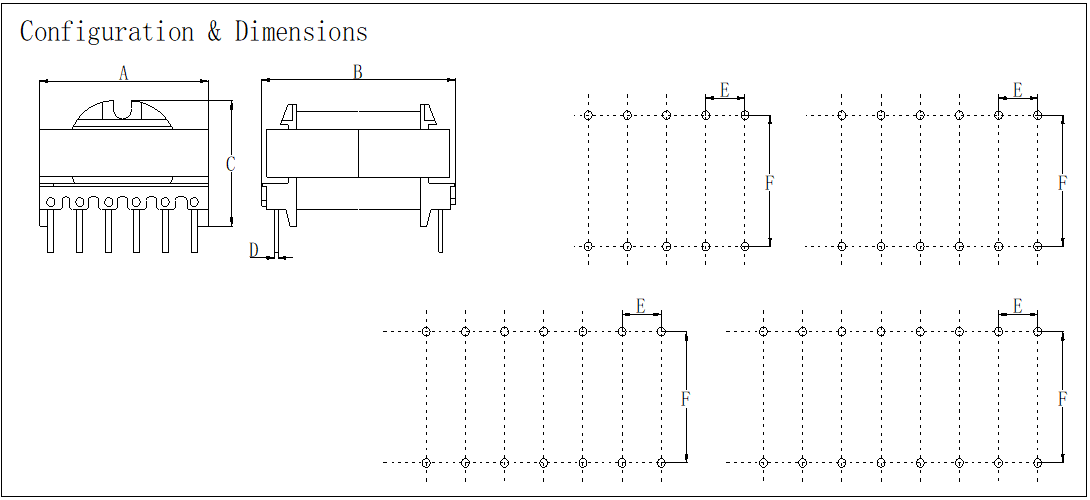

Type | Dimensions（mm) | PIN Number | AE
（mm²） |
A(MAX) | B(MAX) | C(MAX) | D | E | F |
ER28H | 32.0 | 32.0 | 23.5 | 0.6 | 6.0 | 22.0 | 5+5 | 78.6 |
ER28H | 32.0 | 32.0 | 26.5 | 0.8 | 5.0 | 25.0 | 6+5 | 78.6 |
ER28H | 32.0 | 34.0 | 23.5 | 0.8 | 5.0 | 25.4 | 5+5 | 86.1 |
ER28H | 32.0 | 35.5 | 25.0 | 0.8 | 5.0 | 30.0 | 6+6 | 86.1 |
ER35H | 42.0 | 45.0 | 33.0 | 1.0 | 5.0 | 35.0 | 8+8 | 110.4 |
ER35H | 39.0 | 45.0 | 32.0 | 1.0 | 5.0 | 37.0 | 7+7 | 110.4 |
ER39H | 44.0 | 43.0 | 35.0 | 1.0 | 5.0 | 30.5 | 8+8 | 125.0 |
ER40H | 42.0 | 50.0 | 38.0 | 1.0 | 5.0 | 35.3 | 8+8 | 127.9 |
ER42H | 42.0 | 50.0 | 38.0 | 1.0 | 5.0 | 35.0 | 8+8 | 186.4 |
